Labelling Machine
In today’s fiercely competitive beverage market, standing out is essential.Labels are far more than just product identifiers — they are key to differentiating your offerings and delivering the information consumers need and demand.
Boost Beverage Market Competitiveness with Flexible Labelling Solutions

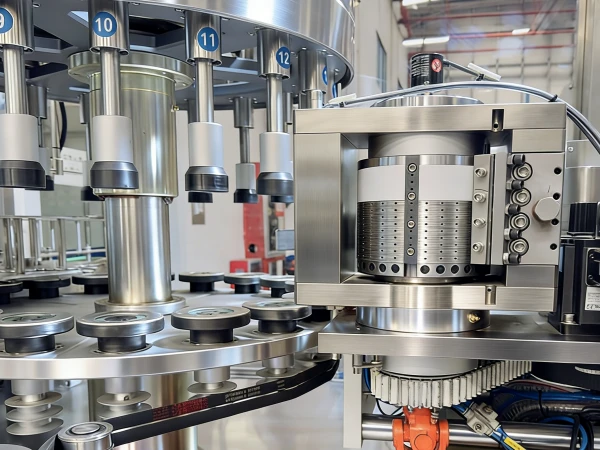

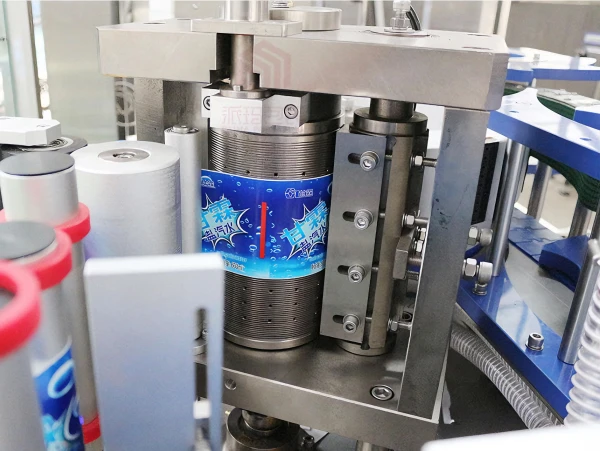

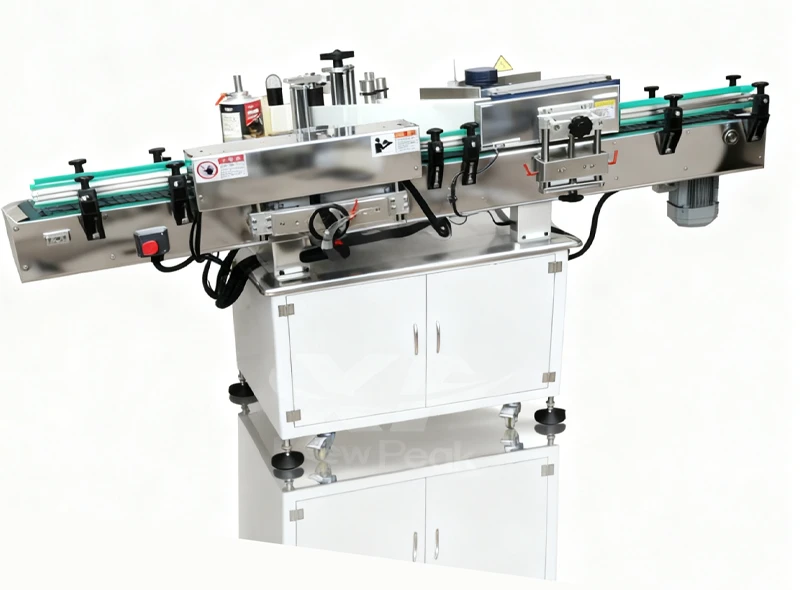

OPP Labeling Machine (Hot Melt Glue Labeler)
Suitable for round bottle side labeling using hot melt glue application. Ideal for mineral water, pickles, cosmetics, pharmaceutical bottles, etc.
Technical Specifications
| Item | Specification |
|---|---|
| Production Speed | 3,000–5,000 bottles/hour |
| Glue Melting Speed | 0.1 kg/hour |
| Label Size | Length 180–360mm, Height 50–100mm |
| Bottle Diameter Range | 50–100mm |
| Power Supply | 220V 50/60Hz |
| Power Consumption | 5 kW |
| Machine Weight | 800 kg |
Product Overview
Model: Fully Automatic Hot Melt Glue Labeling Machine
Applicable Bottle Type: Round bottles
Labeling Method: Hot melt glue coating
Production Speed: 3,000–5,000 bottles/hour
Features
Designed specifically for round bottles with high labeling accuracy
Hot melt glue ensures strong adhesion, suitable for humid environments
User-friendly interface with Chinese/English language support
Functions include no bottle/no label detection and alarm
Main Configuration
Main Frame: SUS304 stainless steel
Control System: Inovance touchscreen + PLC
Drive System: Hocen servo + inverter
Detection System: Panasonic color mark sensor + Omron temperature controller
Applicable Labels: OPP, PET, and other hot melt glue compatible labels

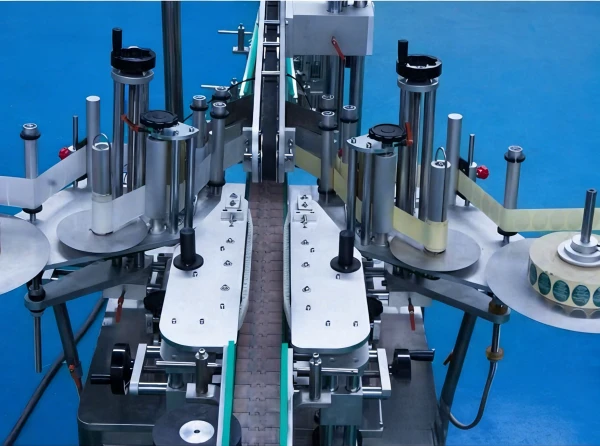

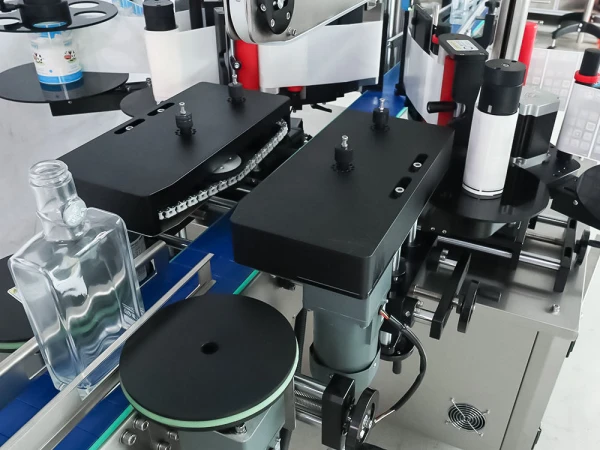

Self-Adhesive Labeling Machine
Suitable for various bottle types (round, square, flat, conical) using self-adhesive labels. Widely used in beverage, cosmetics, pharmaceutical, and other industries.
Model Examples
AGP-100SCT Three-Side Labeling Machine
AGP-100YT Vertical Round Bottle Positioning Labeling Machine
Technical Specifications (AGP-100SCT Example)
| Item | Specification |
|---|---|
| Labeling Speed | 100 bottles/minute (double-side + neck label) |
| Labeling Accuracy | ±1mm |
| Applicable Bottle Types | Round, square, flat, conical bottles |
| Label Size | Height 20–180mm, Length 25–300mm |
| Power Supply | 220V 50/60Hz |
| Power Consumption | 4 kW |
| Overall Dimensions | 3500×1800×1650mm |
Main Configuration
Control System: Delta/Mitsubishi PLC + touchscreen
Drive System: Servo motor + inverter
Detection System: Panasonic/Leuze photoelectric sensors
Mechanical Structure: SUS304 stainless steel + aluminum alloy
Features
Supports multiple bottle shapes and label positions
Servo-driven for stable and precise labeling
Touchscreen operation for easy parameter setting
Functions include missing label, no label, and no bottle detection
Optional configurations: printer, transparent label sensor

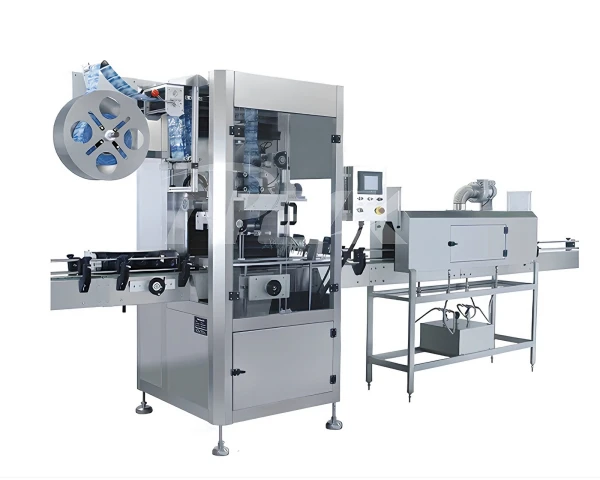

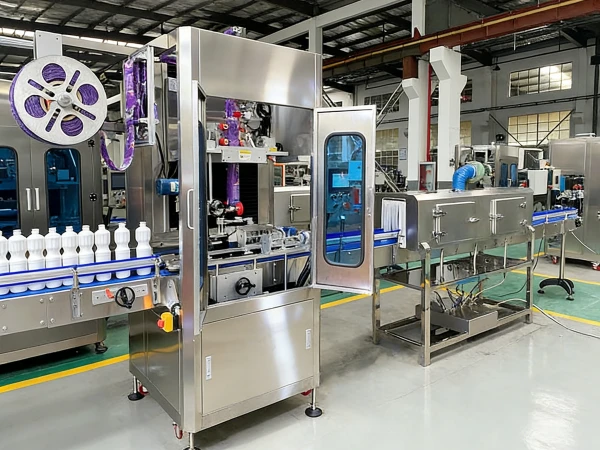

Sleeve Labeling Machine (Shrink Sleeve Labeler)
Suitable for applying shrink sleeve labels on various bottle types. Widely used in beverage, dairy, condiment, cosmetics, and other industries.
Product Overview
- Applicable Labels: PVC, PET, OPS, and other shrink films
- Applicable Bottle Types: Round, square, flat, irregular-shaped bottles
- Labeling Method: Sleeve labeling + heat shrinking
Technical Specifications (Reference)
| Item | Specification |
|---|---|
| Applicable Bottle Diameter | ≤Ø95mm (customizable) |
| Label Core Inner Diameter | Ø152.4mm |
| Maximum Label Diameter | Ø600mm |
| Label Height Range | 30–130mm |
| Power Supply | 220V/380V 50/60Hz |
| Control System | Panasonic PLC + touchscreen |
Main Configuration
Structure Material: Stainless steel + aluminum alloy
Drive System: Servo motor + inverter
Cutting System: Imported blades + constant temperature cooling
Detection System: High-sensitivity photoelectric sensors
Features
Wide compatibility with various bottle types, easy adjustment
Accurate sleeve positioning with smooth post-shrink appearance
Supports double-head labeling (bottle body + cap)
Touchscreen control with intelligent operation
Features automatic feeding and tension adjustment
Labeling Solution Proposal for Clients:
We offer comprehensive labeling equipment solutions designed to meet the diverse needs of various bottle types and labeling processes. All six types of labeling machines listed below can be custom-designed and manufactured according to your specific production requirements:
1.Wrap-around Labeling Machine – Suitable for various bottle shapes including round, square, and flat bottles. Ensures precise positioning and perfect label application.
2.Bottle & Cap Double Wrap-around Labeling Machine – Ideal for products requiring simultaneous labeling on both the bottle body and cap, saving space and enhancing efficiency.
3.Cold Glue Labeling Machine – Used for applying pre-cut paper labels or aluminum foil labels. Commonly employed for glass, plastic, and metal containers.
4.Double-Side Labeling Machine – Capable of applying labels on one or both sides. Compatible with various bottle types such as round, square, and irregularly shaped bottles.
5.Linear Labeling Machine – Suitable for labeling flat surfaces, curved surfaces, and circumferences. Widely applied in the daily chemical, electronics, and pharmaceutical industries.
6.Hot Melt Glue Labeling Machine – Specifically designed for circumferential labeling on round bottles. Provides strong adhesion and is widely used in the food, cosmetics, and pharmaceutical industries.
Labeling Capacity Reference by Bottle Type:
| Bottle Type | Applicable Label Types | Capacity Range (Bottles/Hour) |
|---|---|---|
| Water Bottles | Wrap-around PVC/PET Labels | 3,000 – 36,000 |
| Self-adhesive Plastic Labels | 1,000 – 24,000 | |
| High-Shrinkage Plastic Labels | Up to 24,000 | |
| CSD Bottles | Wrap-around PVC/PET Labels | 3,000 – 36,000 |
| High-Shrinkage Plastic Labels | Up to 24,000 | |
| Juice Bottles | Wrap-around PVC/PET Labels | 3,000 – 36,000 |
| High-Shrinkage Plastic Labels | Up to 24,000 | |
| LDP Bottles | Wrap-around PVC/PET Labels | 3,000 – 36,000 |
| High-Shrinkage Plastic Labels | Up to 24,000 | |
| Glass Bottles | Self-adhesive Plastic/Paper Labels | 1,000 – 24,000 |
| Partial Pre-cut Paper Labels | 1,000 – 20,000 | |
| Partial Pre-cut Aluminum Foil Labels | 1,000 – 20,000 | |
| HPC Bottles (Daily Chemical/Cosmetic) | Self-adhesive Plastic/Paper Labels | 1,000 – 24,000 |
| Partial Pre-cut Paper Labels | 1,000 – 20,000 | |
| Partial Pre-cut Aluminum Foil Labels | 1,000 – 20,000 |
Recommended Equipment by Bottle Material:
Plastic Bottles (e.g., PET, HDPE)
Recommended: Wrap-around Labeling Machine or Hot Melt Glue Labeling Machine.
Suitable Labels: PVC/PET wrap-around labels or high-shrinkage labels.
Capacity: Up to 36,000 bottles/hour.
Glass Bottles
Recommended: Cold Glue Labeling Machine or Self-adhesive Labeling Machine.
Suitable Labels: Paper labels, aluminum foil labels, or self-adhesive labels.
Capacity: 1,000 – 24,000 bottles/hour.
Daily Chemical/Cosmetic Bottles (HPC Category)
Recommended: Double-Side Labeling Machine or Linear Labeling Machine.
Suitable Labels: Self-adhesive labels, pre-cut paper labels, etc., balancing precision and aesthetics.
We Can Provide You With:
Customized labeling solutions
High-precision, high-stability equipment
Intelligent control systems (supporting PLC + Servo drive)
Comprehensive technical guidance and after-sales support throughout the process
